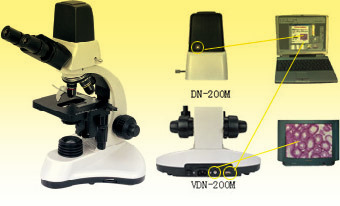

DN-200M
DN-200M



°°Item °°Specification

DN200M

VDN200M

Viewing Head

Compensation Free Binocular Head, at 30°„, 360°„ Rotatable

*

*

Camera System

CMOS Chip, USB1.0 Output, 300,000 Pixel

*

°°

High resolution Chip, RCA, S-Video, USB2.0 Output, CCD digital camera 400,000 pixel

°°

*

Eyepiece

Wide Field WF10X

*

*

Objective

CF High-contrast Objective 4X, 10X, 40X, 100X

*

*

Nosepiece

Backward Quadruple Nosepiece

*

*

Stage

Double Layers Mechanical Stage 140X140mm/75X50mm

*

*

Focusing

Coaxial Coarse & Fine Focus Adjustment

*

*

Condenser

NA1.25Abbe Condenser with lris Diaphragm and Filter, Rack & pinion Adjustment

*

*

Illumination

Halogen Lamp 6V/20W, Brightness Adjustable

*

*
